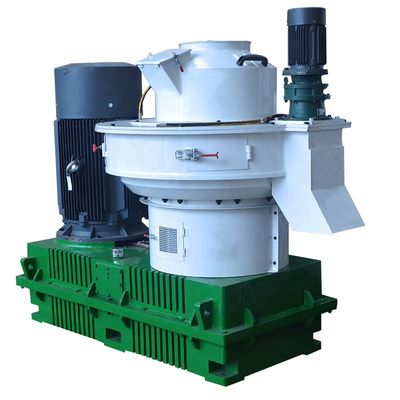

Make Biomass Pellets Ring Die Cow Dung Portable Homemade Carbon Activated Manual Chicken Fertilizer Peletizadora Paper Pellet Machine Tool

1 Set
MOQ
Make Biomass Pellets Ring Die Cow Dung Portable Homemade Carbon Activated Manual Chicken Fertilizer Peletizadora Paper Pellet Machine Tool
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Raw Material Processed: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks
Pellet Diameter (mm): 6 - 10
Output (kg/h): 2000 - 2500 Kg/h
Voltage: 380V/440V/660V Ect.
Dimension(L*W*H): 232*160*194 CM
Motor Power (Kw): 132kw
Power (kW): 132kw
Warranty: 1 Year
Applicable Industries: Energy & Mining, Wood Cutters Machine For Pellet
Key Selling Points: Automatic
Weight (KG): 5900 KG
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, Gearbox
Type: Vertical Rind Die Pellet Mill
Application: Make Biomass Pellets
Product Name: Wood Pellet Machine
Model:: HSKLN-E350
Color: Custom
Mould Type: Ring Mould
Keywords: Ring Die Pellet Mill
Power: 55-75kw
Output: 0.8-1.0t/h
Mould: 450mm
After-sales Service Provided: Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Showroom Location: None
Certification: CE, ISO, BV
Basic Infomation
Certification: CE, ISO, BV
Model Number: HSKLN-E350
Payment & Shipping Terms
Product Description
Product Description

Features

1. Vertical ring-die pellet making machines adopt vertical feeding method. The powdery material is fed into pelletizing chamber directly. The mold of the machine is still while the ring-die is rotating. Under the function of centrifugal force, the material will distribute evenly in the pelletizing chamber. The mold of a vertical pellet machine is not easily clogged. Thus, the service life of the mold is prolonged. 2. The main gear adopts high-accuracy gear drive and the bearing is made from high-quality alloy material. The pelletizing rate of vertical pellet making machine is up to 95%. It is applicable to large-scale pellet production line.
Product specifications
Model
Power
Output
Mould Size
HSKL-450
55-75(kw)
0.8-1.0(t/h)
450(mm)
HSKL-480
90(kw)
1-1.2(t/h)
480(mm)
HSKL-580
110-132(kw)
1.5-2.0(t/h)
580(mm)
HSKL-600
132-160 (kw)
1.5-2.5(t/h)
600(mm)
HSKL-800
160-185 (kw)
2.5-3.5(t/h)
800(mm)
Application
Wood Pellets
Wood pellets are also called biofuel pellets, which are mainly used as fuel for fireplace, industrial boilers and power plants.
Production Line
Certifications
Why choose us

Our Advantages

1. We have a wealth of project experience and can provide complete technical guidance.
2. Provide integrated installation and complete guidance services

Strong Technical Team

Customized service: customize equipment according to your requirements.
Installation service: send our workers to your country to install the production line.
Packaging & Shipping

Packaging Specification:

Outside Package : Wooden Packing as Exported Standard.
Inner Package : Stretch Film

About Shipping

We can be responsible for the shipping according to the customers's requirments to ship the machines by sea, express or air. Besides, we can cooperate with your agent if you have shipping forwarder in China.
