Reliable Pressure and Temperature Protection Gas and Liquefied Gas Fired Industry Hot Water Boiler
Low nitrogen three-pass gas hot water boiler application range: heating, hospitals, hotels, etc.
Low nitrogen three-pass gas hot water boiler applicable fuel: coal gas, natural gas and liquefied gas, etc.

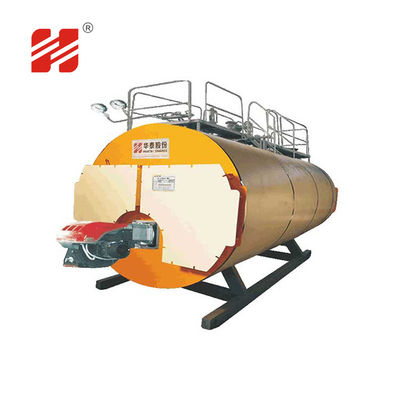

The WNS low-nitrogen three-pass gas hot water boiler is a horizontal internal combustion wet-back fully automatic gas hot water boiler. The pressure components are all welded and consist of a corrugated furnace bladder combustion chamber, a back-combustion chamber, a smoke pipe and an energy saver.
After the fuel is burned by the burner and the bladder combustion chamber, the flue gas passes through the back-combustion chamber, the second return convection pipe, the front smoke box, and the third return convection pipe through the flue into the economizer and finally discharged through the chimney.
The main feature of the wet back boiler is the back-combustion chamber, achieved the "fire-in-water" structure, fundamentally solve the problem of overheating of the smoke box, an explosion-proof door doubles as an inspection hole at the rear of the back-combustion chamber. The furnace can be inspected through this hole.
Features:
Sufficient heating power: The total heating area of the boiler is sufficient to fully absorb effective heat, the exhaust gas temperature is low, the heat loss is small, and the power output is sufficient and the efficiency is high.
Strong heat load regulation ability: large shell diameter, large water capacity, strong adaptability to load changes, and stable output.
Reliable pressure and temperature protection: multiple control protections for boiler pressure and water temperature, as well as over-smoke temperature protection, ensure the safety of boiler operation.
FAQ:
1.What can you get from us before quotation?
A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
2.Below are the details need your confirmation before quotation?
A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?
2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?
2.3. What is the requirement for oil/steam temperature and pressure?
3.What are the available fuel for the oil gas fired boiler?
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
4.How long can we get the reply with detailed information for our project ?
A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
