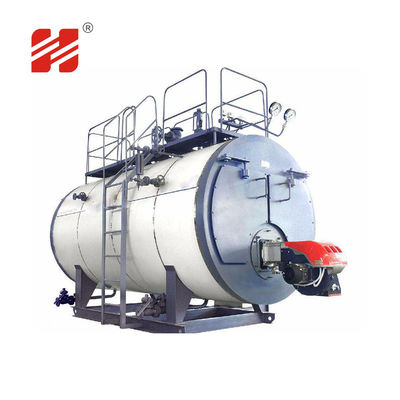

Horizontal Single Operation High Efficiency And Energy Saving WNS Three Pass Steam Boiler

1 Set
MOQ
$10,680.00(>=1 Sets)
Price
Horizontal Single Operation High Efficiency And Energy Saving WNS Three Pass Steam Boiler
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Boiler
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Steam Production: Max. 60t/h
Style: Horizontal
Fuel: Gas Or Oil Fired Boiler
Output: Hot Water Or Steam
Dimension(L*W*H): As Per Detailed Model
Weight: 4.87 - 44.7 T
Warranty: 1 Year
Key Selling Points: High Safety Level
Product Name: WNS Steam Boiler
Efficiency (Oil/Gas): 97 - 100%
Capacity: 1.0 - 20.0 T/H
Rated Steam Pressure: 1.0 - 1.25 Mpa
Rated Steam Temperature: 184/194℃
Fuel Gas Consumption: 69.8 - 1396 Nm3/h
Application: Industrial Production
Design Fuel: Natural Gas
Material: Special Boiler Steel Plate
Application Field: Building Materials
Basic Infomation
Payment & Shipping Terms
Packaging Details: Good sealed green boiler technology gas fired output steam boiler for petroleum refining 1.Standard export packing 2.According to customer requirements
Supply Ability: 50 Set/Sets per Month
Product Description
Product Overview

Simple Operation High Efficiency and Energy Saving WNS Three Pass Steam Boiler

WNS series fuel oil gas gas steam boiler adopts a horizontal internal combustion three-pass full wet back structure, fully automatic control, the user only needs to lightly press the start button, and the boiler can be started according to the set program. Load adjustment, automatic water replenishment, etc. are all fully automatic operations to meet user requirements. It has the performance advantages of high efficiency and energy saving, large steam space, safety and reliability, simple operation, long life and durability.
Advantages:
. Reasonable design The horizontal internal combustion three-pass full wet back structure, 100% fire-in-water design, 100% corrugated furnace, with good expansion, and with sufficient heating area and reasonable structural layout.
. High efficiency and
energy saving The corrugated furnace, threaded smoke tube, large space combustion chamber and reasonable structural arrangement can achieve low energy consumption and high efficiency heat exchange effect. The thermal efficiency of the boiler can reach 92% or more. If equipped with the condenser , the efficiency can reach 100%. above.
. Standardized manufacturing
Each part of the boiler is manufactured in accordance with national standards and international standards (ISO), and each production link is strictly followed by advanced production technology to ensure reliable product quality.
. Large steam space
The boiler has sufficient steam space to deal with load fluctuations and peak changes and provide high-quality dry steam, because dry steam helps eliminate unnecessary additional condensation, thereby saving fuel consumption and reducing system fouling and extending service life.
.Long lifetime and durability
The professional design of the boiler, advanced production technology, and strict quality inspection
are the guarantee of the quality of each boiler. The life of the boiler body in normal use is more than 20 years.
. Easy maintenance
There are movable smoke box doors at the front and rear, and there is an inspection hole at the rear to enter the furnace for inspection and cleaning. Manholes, head holes and hand holes are set on the body, and the structure design fully considers future maintenance.
. Environmental protection
Combustion chamber is equipped with front and rear cone furnaces, with good flame fullness, coupled with corrugated furnaces, high-quality and reliable imported burners, so that the fuel can be fully
burned, and at the same time, the generation of harmful components in the flue gas can be greatly reduced. By the relevant department tests show that the company's fuel oil (gas) boiler meets the country's strict environmental protection requirements and can meet the continuously increasing domestic environmental protection requirements.
. Reliable accessories
Equipped with world-famous burners and advanced control cabinets, valves and pumps are all domestic high-quality brands. Reliable boiler supporting equipment can ensure the safe and reliable operation of the boiler and improve the overall quality of the boiler.
.Advanced control system
Fully automatic control, the user only needs to lightly press the start button, and the boiler can be started according to the set program. Load adjustment, automatic water replenishment, etc. are all fully automatic operations to meet user requirements.
. High-quality service
Technical consultation, technical service, installation guidance, regular and irregular return visits to users, provide high-quality and perfect services at any time, so that users can buy at ease and use comfortably.
Model
Rated evaporation（t/h）
Rated working pressure（MPa）
Saturated steam temperature（℃）
Boiler efficiency（%）
WNS1-1.0-Y(Q)
1
1.0
184
≥98%
WNS2-1.0/1.25-Y(Q)
2
1.0/1.25
184/194
≥98%
WNS4-1.0/1.25-Y(Q)
4
1.0/1.25
184/194
≥98%
WNS6-1.25/1.6-Y(Q)
6
1.25/1.6
194/204
≥98%
WNS10-1.25/1.6-Y(Q)
10
1.25/1.6
194/204
≥98%
WNS15-1.25/1.6-Y(Q)
15
1.25/1.6
194/204
≥98%
WNS20-1.25/1.6-Y(Q)
20
1.25/1.6
194/204
≥98%
Our Company
Our Factory
Customer Case
Ready to Ship
Our Services
Certifications
FAQ
1.What can you get from us before quotation? A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue. 2.Below are the details need your confirmation before quotation? A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler? 2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil? 2.3. What is the requirement for oil/steam temperature and pressure? 3.What are the available fuel for the oil gas fired boiler? A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc. 4.How long can we get the reply with detailed information for our project ? A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
