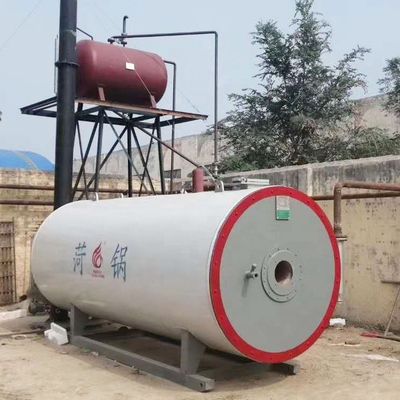

Natural Gas Diesel Oil Fired Heat Transfer Thermal Oil Boiler For Plywood Industry
Working principle of organic heat carrier furnace:
The organic heat carrier furnace(thermal oil heater boiler) is the once through special boiler, uses coal (bituminous coal, anthracite), light oil, heavy oil, liquefied petroleum gas, natural gas, artificial gas, waste wood, sanding powder, etc. as fuel, and the heat transfer oil is used as a heat carrier, and the circulating pump is used to force liquid phase circulation to transfer the heat energy to heat equipment, and then returns to the heating furnace to reheat the heat.
Technical Parameters of Thermal Oil Boiler Natural Gas Diesel Oil Fired Heat Transfer Thermal Oil Boiler For Plywood Industry | ||||
Boiler Model | Unit | YYQW-700Y(Q) | ||
Heat Supply | kcal/h | 60,000 | ||
Rated heating power | kw | 700 | ||
Working pressure | MPa | 0.8 | ||
Boiler thermal efficiency | % | 93.63/94.95 | ||
Rated supply oil temperature | ℃ | 300 | ||
Rated return oil temperature | ℃ | 280 | ||
Max.allowance working temperature | ℃ | 320 | ||
Oil capacity in furnace | m³ | 0.64 | ||
Cycle oil capacity | m³ | 56.7 | ||
Boiler body weight | t | 5.05 | ||
Boiler outline dimension (Length*Width*Height) | mm | 3758 x 1920 x 2050 | ||
Brand: Italy Baltur
Original: Italy
Advanced proportional adjustment, fully automatic and precise control for maximum fuel savings.
Model: RY100-65/200B
Head:38m
Flow:87m3/h
Power:15kw
Electric Control Cabinet
3.the water level control of the drum;3. System constant pressure control;
4. Computer monitoring and protection plus independent circuit protection in case of water shortage, over-pressure and over temperature;
5, burner 1-3 fire control; 6. Working time record; 7, flameout alarm;
Economzier or Energy Saving
Made of ND steel, ND steel is the most ideal steel for "sulfur-resistant low-temperature dew point corrosion" at home and abroad. Compared with carbon steel, Japan imported steel and stainless steel corrosion resistance, it is 1.84 times that of Japanese CR1R steel. The austenitic stainless steel is 2.97 times, which is 14.11 times that of ordinary carbon steel, and has a long service life. It has strong thermal conductivity and can increase thermal efficiency by more than 3.5%.
Capacity: 0.35MW to 14MW
High temperature under low pressure
More than 92% thermal efficiency
Complete automatic control and safety monitoring device
Widely used in chemical industry, plywood factory, asphalt production line, plastic rubber industry,etc.
TOP 10 Enterprise in China
Gas Boiler Industry
Capacity: 0.5ton to 65tons (0.35MW to 46MW)
More than 95% thermal efficiency, stable output
Three pass wet back structure with corrugated furnace
Complete fully automatic control and safety protection devices
Cryogenic Tank
Volume:5,000L to 200.000L
Orientation: Horizontal or Vertical
Vacuum powder insulated cryogenic pressure vessel
Double-layer structure,good thermal insulation performance
Low thermal conductivity, small evaporation loss and long service life
Volume: 5,000L to 200,000 L
Design Pressure: 1.77MPa (17.7Bar)
Max. Allowance Working Pressure: 1.82MPa (18.2Bar)
Largest Production Base of LPG Tank in China
Model: DZH/DZL/SZL
Output: STEAM OR HOT WTER
Capacity:1-30TON/H
Pressure:0.7MPA, 1.0MPA, 1.25MPA,1.6MPA,2.5MPA
Application:Chemical, Food, Textile, Medicine, Building Materials,etc
Volume: 5,000L to 600,000 L
Design Pressure: 1.77MPa (17.7Bar)
Max. Allowance Working Pressure: 1.82MPa (18.2Bar)
Largest Production Base of LPG Tank in China
Natural Gas Diesel Oil Fired Heat Transfer Thermal Oil Boiler For Plywood Industry
thermal oil boiler packing and loading :
1.one set YYQW-350 model gas fired thermal oil boiler should load in one 40HQ
2.one set YYQW-500 model oil fired thermal oil boiler price should load in one 40HQ
3.one set YYQW-700 model 600000kcal thermal oil boiler should load in one 40HQ
4.one set YYQW-1200 model gas fired thermal oil boiler price should load in one 40HQ
5.one set YYQW-1400 model natural gas thermal oil heater boiler should load in one 40HQ
6.one set YYQW-1900 model diesel oil thermal oil furnace boiler price should load in one 40HQ
7.large capacity of gas fuel thermal oil boiler, like YYQW-2500, YYQW-3500 gas boiler should load in 40FR
Thermal Oil boiler Can Be Used For The Industry:
China Best Price Gas Oil Fired Thermal Fluid Hot Oil Boiler Heater
thermal oil boiler for sale, hot oil boiler, thermal oil for boiler
1.Petrochemical industry: Polymerization, Condensation, Distillation, Concentration, Evaporation, Melting, Dehydrogenation
2.Chemical Industry: Polymerization, Condensation, Distillation, Concentration, Evaporation, melting
Plastic Rubber Industry: Mixing, Hot Pressing, Extrusion Calendering, Internal Mixing, Open Rolling, Vulcanization Molding, Tentering, Mold Heating, Heat Preservation
3.Oil Industry: Decomposition of oil, Deodorization, Fatty Acid Distillation, Lipidation
4.Textile Industry: Heating Setting, Hot Melt Extrusion for Pharmaceutical Industry; Preparation, Configuration, Disinfection
5.Coating Industry: Paint Baking, Drying, High Temperature Curing
6.Construction Industry: Asphalt Dissolution, Paint Heating, Decorative Material Heating, Waterproof Material, Linoleum Product
7.Food Industry: Vegetables Dehydrating, Food Baking, Rice & flour drying
8.Air Conditioning Industry: Heating for Industrial and Civil Building Heating
9.Other Industries: Paper Industry, Cardboard Industry, Leather Drying and Shaping, Other Drying
Shandong Zhongjie Pressure Equipment Co., Ltd (Formerly Heze Boiler Factory Co., Ltd) was founded in 1984. After more than 30 years of development, the company has become a professional equipment manufacturer with four major product segments: pressure vessel, industrial boiler, central air conditioner and engineering installation with integrated R&D, design, production, installation, commissioning and technical services.
Our company has Class A pressure vessel design certification, Class A pressure vessel manufacturing certification, Class B boiler manufacturing certification, GC2/GB2 pressure pipe installation and renovation maintenance certification, boiler level 2 installation and renovation maintenance certification, Class A II refrigeration and air conditioner equipment maintenance and installation certification and ASME certification, ISO9001/ISO14001/OHSAS 18001 and so on.
Our main products as below:
1)WNS/SZS Oil Gas Fired Steam Boiler/Hot Water Boiler;
2)DZH/DZL/SZL Model Biomass Pellet Wood/Coal Fired Steam Boiler / Hot Water Boiler;
3)YY(Q)W Series Natural Gas or Diesel Oil or Heavy Oil Fired Thermal Oil Boiler;
4)YGL/YGW/YLW Type Solid Fuel Wood Pellet Biomass Fired Thermal Oil Heater Boiler;
5)Waste Heat Recovery Boiler;
6) Stationary LPG Storage Tank (5000L to 200,000L)
7) Cryogenic Storage Tank (LNG Tank, Liquid Oxygen/Nitrogen/Argon/LCO2 Tank)
8) Mobile Skid Mounted LPG Filling Station (5000L to 60,000L)
9) Integrated design, manufacturing, and installation services
1.Q: Are you a factory or trading company?
A: We are a leading manufacturer of pressure vessels,including lpg storage tank, LNG storage tank, cryogenic vacuum insulated storage tank, liquid ammonia tank, skid mounted lpg filling stations,and spare parts with more than 30 years experiences. We are the largest production base of lpg storage tank in China now, sincerely welcome to visit our factory.
A: We can offer complete solutions integrated with design, manufacturing, installation, inspection and maintenance at competitive prices. And We provide lifelong tracking service and one year free warranty for all of our products. we also provide training and technical support to guide you install and
