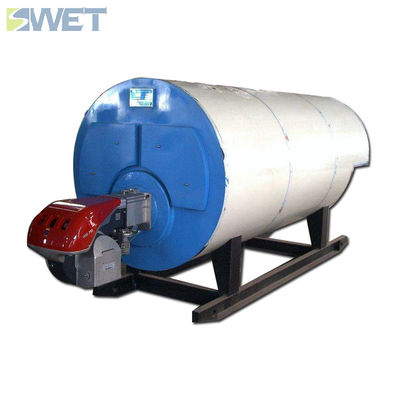

WNS Series 1.25mpa 0.5 Ton 500kg/hr Horizontal Household Gas Boilers For Central Heating

1.0 Sets
MOQ
WNS Series 1.25mpa 0.5 Ton 500kg/hr Horizontal Household Gas Boilers For Central Heating
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Household Gas Boilers
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Water Tube
Pressure: Low Pressure
Steam Production: Max. 0.5t/h
Style: Horizontal
Fuel: Gas-fired
Output: Steam
Dimension(L*W*H): 3250*1260*1600 (mm)
Weight: 2812kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Model Name: Household Gas Boilers
Rated Evaporation: 0.5ton/hr (500kgs/hr)
Rated Working Pressure: 1.25Mpa
Rated Steam Temperature: 194 Degree Celsius
Boiler Efficiency: 92.11%
Rated Gas Consumption: 42.6 Standard Cubic Meter Per Hour
Power Supplly: 380V 50Hz (can Be Customized)
Power Consumption: 1.6kw
Usage Of Fuel: Natural Gas, City Gas Etc
Exhaust Gas Temperature: 142.2 Degree Celsius
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Basic Infomation
Model Number: household gas boilers
Payment & Shipping Terms
Packaging Details: The household gas boilers is covered with a waterproof film and the transport package is a wooden box.
Supply Ability: 1500 Set/Sets per Year household gas boilers
Product Description

WNS series 1.25mpa 0.5 ton 500kg/hr household gas boilers for central heating

Product Description
Advanced and reasonable design
WNS series steam boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.
A large combustion chamber which increases the radistion heating furnace
Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and mazout, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.
Superior accessories
Adopts famous imported burner brands such as Italian Riello and Baltur, Finland Oilon. All main instruments and valves are from international or domestic famous brands such as Siemens, Shneider and Omron.
PLC full automatic control system
PLC modular control system enhanced energy management system, offers significant advancements including many new individual monitoring points. With our optimized parameter setting ,the easy-to-use interface provides your facility with an intelligent boiler system to optimize energy and personnel management for increased productivity, efficiency and a reduced environmental impact.
Steam boiler technical parameters
Model WNS0.3-0.4-Y(Q) WNS0.3-0.7-Y(Q) WNS0.5-1.0-Y(Q) WNS0.5-1.25-Y(Q) WNS1-1.25-Y(Q) WNS2-1.25-Y(Q) WNS2-1.6-Y(Q)
Rated evaporation (t/h) 0.3 0.3 0.5 0.5 1.0 2.0 2.0
Rated working pressure (Mpa) 0.4 0.7 1.0 1.25 1.25 1.25 1.6
Rated steam temperature (°C) 151 170 184 194 194 194 204
Design thermal efficiency (%) 92.18 92.32 92.45 92.11 92.34 92.7 92.6
Rated oil consumption (kg/h) 24.9 25.1 33.2 34.3 70.2 138 137
Rated gas consumption (Nm³/h) 19.8 20.7 41.3 42.6 85 167 166
Power consumption (KW) 0.93 0.93 1.6 1.6 2.6 7.0 7.0
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ
Combustion method Room combustion, Slightly positive pressure combustion
Exhaust temperature (°C) 153.5 165.5 141.3 142.2 128.2 124.8 129.9
Approx shipping weight (kg) 1807 1842 2456 2812 5400 6950 7120
Approx shipping size (m) 2.46*1.16*1.5 2.46*1.16*1.5 3.25*1.36*1.6 3.25*1.26*1.6 4.1*1.72*2.0 4.6*1.9*2.2 4.6*1.9*2.2
Model WNS3-1.25-Y(Q) WNS4-1.25-Y(Q) WNS4-1.6-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q) WNS10-1.6-Y(Q)
Rated evaporation (t/h) 3 4 4 6 8 10 10
Rated working pressure (Mpa) 1.25 1.25 1.6 1.25 1.25 1.25 1.6
Rated steam temperature (°C) 194 194 204 194 194 194 204
Design thermal efficiency (%) 92.12 92.13 92.3 92.47 92.35 92.43 92.45
Rated oil consumption (kg/h) 208 267 275 410 543 688 689
Rated gas consumption (Nm³/h) 252 300 334 498 657 836 837
Power consumption (KW) 14.5 14.5 14.5 27 33.5 37 37
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ
Combustion method Room combustion, Slightly positive pressure combustion
Exhaust temperature (°C) 135.9 134.6 134 129.5 118 136.3 136.8
Approx shipping weight (kg) 9000 11200 11484 13505 21702 23241 24106
Approx shipping size (m) 5.0*2.02*2.38 5.6*2.15*2.64 5.6*2.15*2.64 6.2*2.24*2.69 6.65*2.63*3.14 7.25*2.86*3.3 7.25*2.86*3.3
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Production Process
Application
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
Our engineering case
Company Information
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland.
In 1987 China's first circulating fluidized bed boiler was born in our factory.
In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
OUR ENTERPRISE HONOR
OUR ADVANTAGES
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
China 's top ten boiler manufacturing enterprises.
Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
North China Water Conservancy and Hydropower University teaching and research base.
The China’s first circular flow bed (CFB)boiler manufacturer.
Packaging & Shipping
Some of our domestic customers
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
Our Customer Visit
Other Products:
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
Contact us
Our Service
Technical services
According to the user's technical requirements, at any time to design units user units to provide technical services.Provide detailed design and installation of technical parameters for the user unit.Providing technical services in the installation engineering for the user units and providing on-site technical support.
After installation, the boiler host can be debugged free of charge.The company is free to send experts to the boiler for the use of units of fireman on-site technical training, training content including operation, maintenance, maintenance.
Quality assurance
The design and manufacture of the products are strictly carried out in accordance with the "GB" standard and the factory quality assurance system of China, and are strictly monitored according to the national standards of China.
Provide the quality guarantee issued by the competent department to the use unit. After the product is put into operation, it can guarantee the user to achieve the required output and stable and reliable operation.
