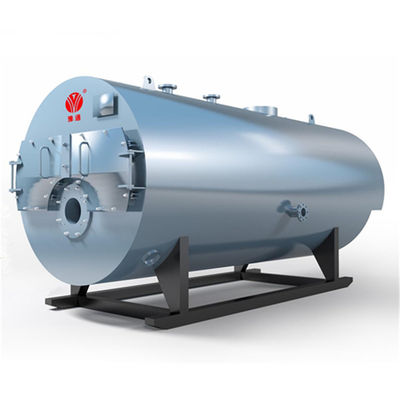

This series boiler is horizontal three pass fire tube hot water boiler.It equipped with good performance burner and advanced techniques.The burning control, water feed,programs run,etc,are full automatic.This boiler is safe and reliable, and also has the advantage of compact structure,simple operation,easy installation, high efficiency ,less pollutionand noise,etc.It is widely used for factory, hotel, hospital, office building, etc.
Features of Chinese 1mw 3MW Automatic Diesel Oil Natural Gas LPG Fired Hot Water Boilers for Industrial Heating
1.Monitoring of water level: Equipped with water level electronic detector to control the water level.
2.Setting time: The users can set the starting and stopping time as their demand.
3.Electric leakage protection: When the elements of boiler have a electric leakage, the control system will cut off power automatically.
4.Water shorage protection: When the boiler is lack of water, the system will turn off burner and raise alarm.
5.Over pressure protection:When the pressure of boiler is over your setting point, burner will stop working and raise alarm.
6.Power abnormal protection:When the power ia abnormal, the boiler will stop working immediately.
Technical Parameters of Chinese 1mw 3MW Automatic Diesel Oil Natural Gas LPG Fired Hot Water Boilers for Industrial Heating
|
Item |
CWNS0.35- |
CWNS0.48- |
CWNS0.58- |
CWNS0.7- |
CWNS1.05- |
|
Rated power |
0.35 |
0.48 |
0.58 |
0.7 |
1.05 |
|
Working pressure |
Normal Pressure |
||||
|
Rated Outlet Water |
85 |
||||
|
Rated Return Water |
65 |
||||
|
Efficiency % |
90 |
||||
|
Suitable Fuel |
Heavy oil, Light oil, Natural gas, City gas |
||||
|
Water Capacity L |
420 |
630 |
900 |
1050 |
1560 |
|
Power consumption |
1.1 |
2.3 |
2.3 |
2.3 |
4 |
|
Size m |
1.96*0.92*1.25 |
2.48*1.02*1.43 |
2.67*1.12*1.48 |
2.67*1.21*1.48 |
2.93*1.36*1.76 |
The 2ton oil gas fired hot water boiler is transport to Ethiopia, 7 big trucks are used for this shipping. Customer uses the boiler for his textile mill.
Zambia customer went to visit Sitong boiler in May, 2016. He spoke highly of the WNS Gas Oil fired Hot Water boiler, as this kind of boiler with full automaticlly and control system, best coil design, and optimal smoke gas flow design.
Business Exhibition of Chinese 1mw 3MW Automatic Diesel Oil Natural Gas LPG Fired Hot Water Boilers for Industrial Heating
Certification of Chinese 1mw 3MW Automatic Diesel Oil Natural Gas LPG Fired Hot Water Boilers for Industrial Heating
Warranty and after-sale service
Sitong promises the top quality of every set of machine and best
after-sales service as followings:
1.The boiler body guarantee is two years, for accessories three years.
2.During the guarantee period , if the main body defective or broken without wrong operating , Sitong must replace the parts for free or prepare the spare-parts for free.
3.Sitong should provide boiler technical service and operation guidance for whole life long.
4.Regarding to the installation and training , the buyer should take all the correlative charges (accommodation and food , round -trip tickets).
